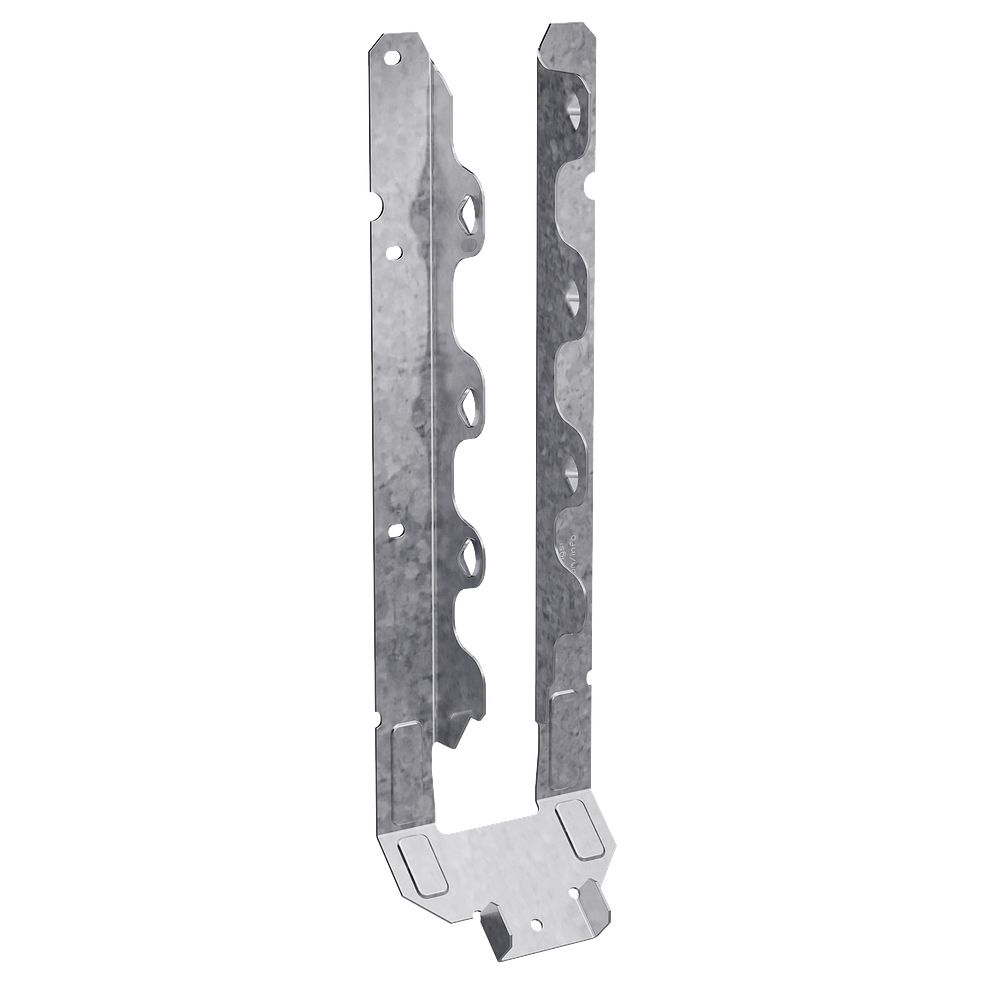

Key Features
  • The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications.
  • May be sloped down from 0° (0:12 pitch) to 49° (14:12). For slopes greater than 45°, allowable downloads are 0.85 of table loads.
  • May be sloped up from 0° to 45°.
  • For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter to hang below the ridge beam (see “Max. C1” dimension in Standard Installation table).
  • View More Product Details
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Clear Filter

Joist Size


Simpson Strong-Tie LRU26Z Face-Mount Rafter Hanger for 2x6 Joist Size, 18 Gauge, ZMAX®, 1 pc
{QUOTE}

Simpson Strong-Tie LRU28Z Face-Mount Rafter Hanger for 2x8 Joist Size, 18 Gauge, ZMAX®, 1 pc
{QUOTE}

Simpson Strong-Tie LRU210Z Face-Mount Rafter Hanger for 2x10 Joist Size, 18 Gauge, ZMAX®, 1 pc
{QUOTE}

Simpson Strong-Tie LRU212Z Face-Mount Rafter Hanger for 2x12 Joist Size, 18 Gauge, ZMAX®, 1 pc
{QUOTE}
