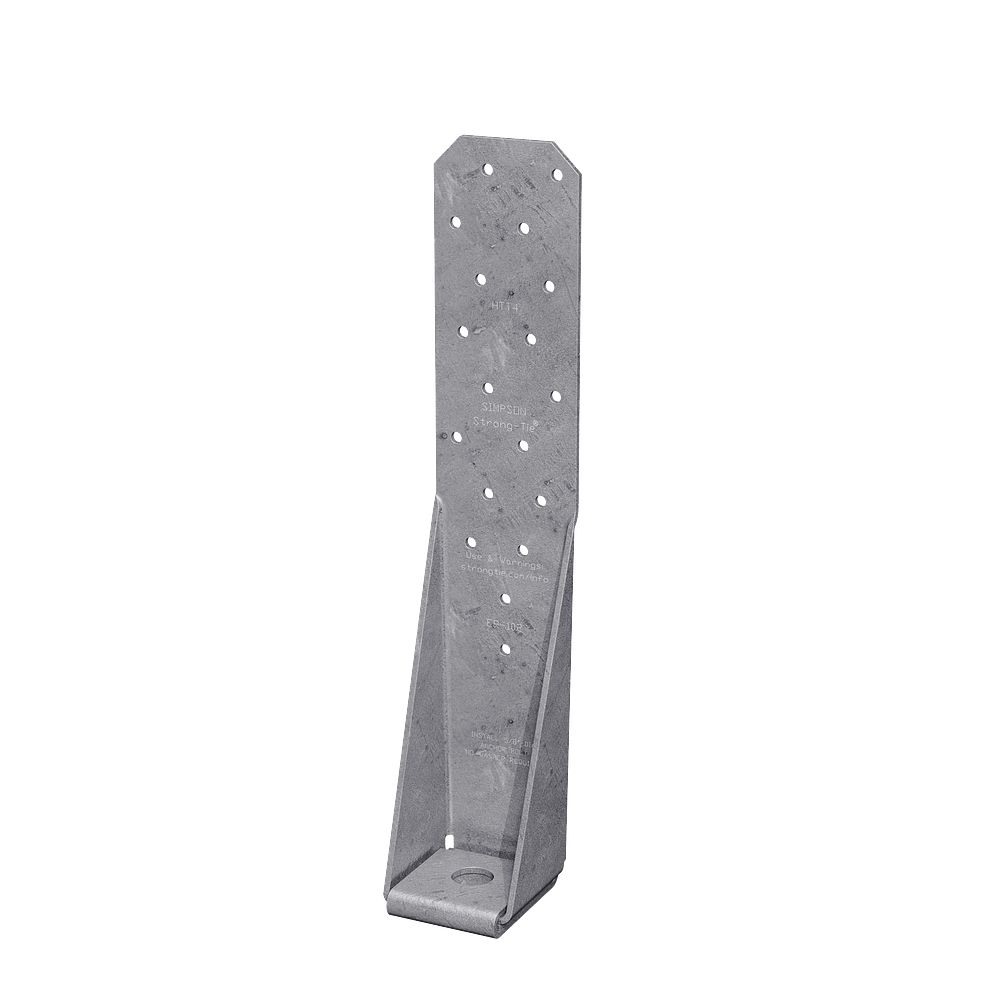

The HTT is a high-strength solution for resisting tension loads in post-pour, wood-to-concrete connections. This heavy, single-piece formed tension tie is fastened with nails or Strong-Drive® SD Connector screws. The HTT has a four-ply formed seat and a design without rivets that does not require washers.

The HTTH6.5 heavy tension tie is an ideal solution for residential construction as well as light-framed wood commercial buildings. Tested per AC 155, the HTTH6.5 is the first nailed-on holdown to achieve up to 7,650 lb. allowable load, making it an economical solution when heavier loads are required.

Key Features
  • Optimized nailing pattern for better performance and less deflection
  • Ideal for retrofit or new construction projects
  • HTT5KT holdown is sold as a kit with the bearing plate, washer and Strong-Drive SD Connector screws
  • Four-fold seat to reduce deflection
  • View More Product Details
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Gauge

Width

Length

Coating

Item #

Item Name

Price

Add To Cart/Request Quote
N/A 2-1/2" x 12-3/8" Simpson Strong-Tie HTT4 Heavy Tension Tie, 11 Gauge, Zinc Galvanized, G90 Coating, 1 pc {QUOTE} Add To Cart
Request Quote
N/A 2-1/2" x 12-3/8" Simpson Strong-Tie HTT4HDG Heavy Tension Tie, 11 Gauge, Hot-Dip Galvanized Coating, 1 pc {QUOTE} Add To Cart
Request Quote
N/A 2-1/2" x 16" Simpson Strong-Tie HTT5 Heavy Tension Tie, 11 Gauge, Zinc Galvanized, G90 Coating, 1 pc {QUOTE} Add To Cart
Request Quote
N/A 2-1/2" x 16" Simpson Strong-Tie HTT5-3/4 Heavy Tension Tie, 11 Gauge, Zinc Galvanized, G90 Coating, 1 pc {QUOTE} Add To Cart
Request Quote
N/A 2-1/2" x 16" Simpson Strong-Tie HTT5HDG Heavy Tension Tie, 11 Gauge, Hot-Dip Galvanized Coating, 1 pc {QUOTE} Add To Cart
Request Quote
N/A 2-1/2" x 16" Simpson Strong-Tie HTT5KT Heavy Tension Tie, 11 Gauge, Zinc Galvanized, G90 Coating, 1 pc {QUOTE} Add To Cart
Request Quote
N/A 3" x 20-1/4" Simpson Strong-Tie HTTH6.5 Heavy Tension Tie, 10 Gauge, Zinc Galvanized, G90 Coating, 1 pc {QUOTE} Add To Cart
Request Quote
